GUTTER SYSTEMS
SPANFLOW

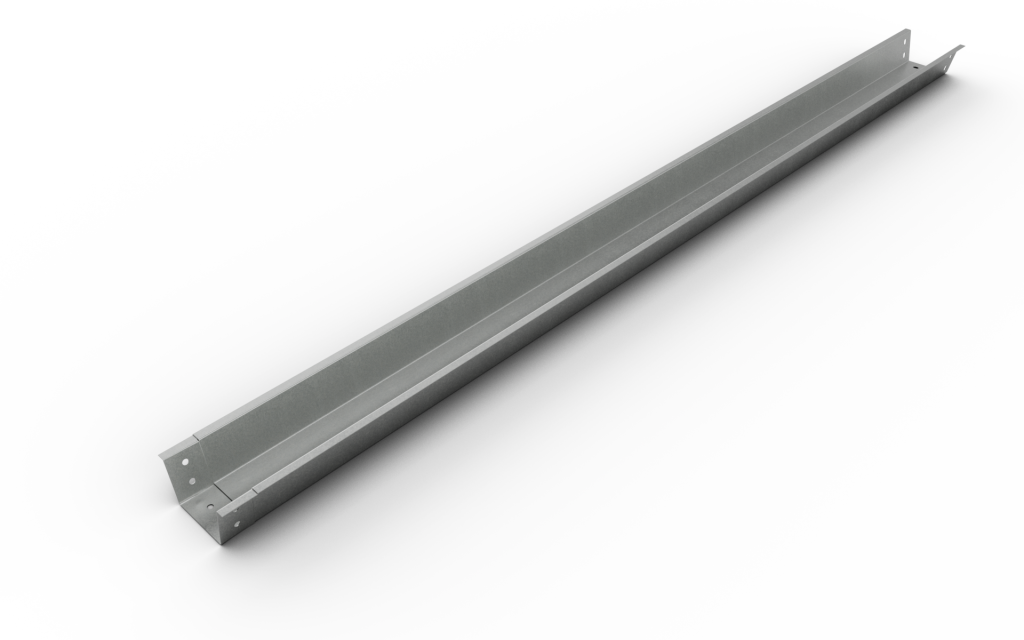

The Spanflow Gutter from Thomas Panels and Profiles is a high-performance, versatile rainwater management solution developed for industrial and commercial buildings. Engineered for seamless integration, it delivers a robust, reliable, and easy-to-install system that enhances overall drainage efficiency and long-term building performance.
MagiZinc Coated Steel for Enhanced Durability
All Spanflow gutters are manufactured from MagiZinc, an advanced zinc-aluminium-magnesium coated steel that provides superior corrosion resistance compared to traditional galvanised materials. This high-performance coating makes Spanflow gutters particularly well suited to demanding environments, ensuring extended service life, reduced maintenance, and reliable protection against the elements.
Manufacturing Limits

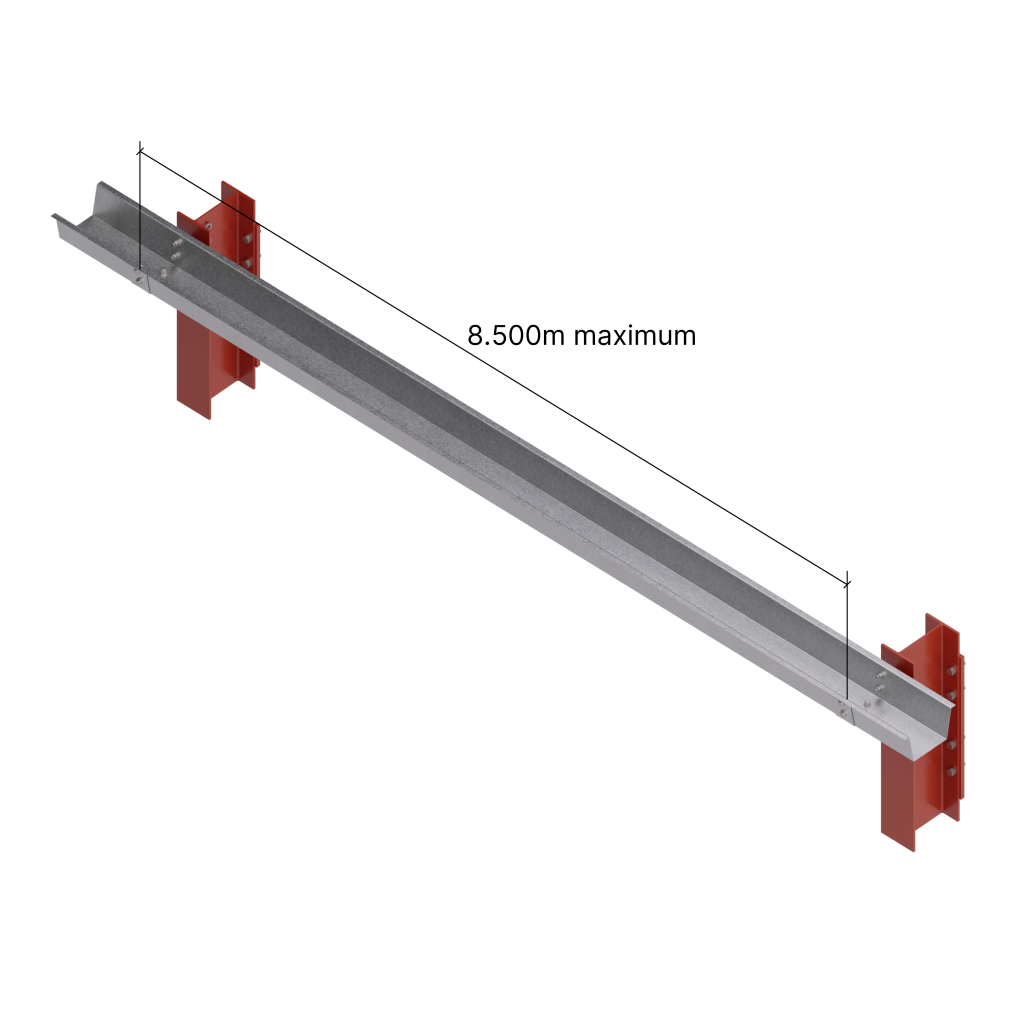

8.500m
Maximum Length
1000mm
Minimum Length
1.6, 2.0mm
Gauges

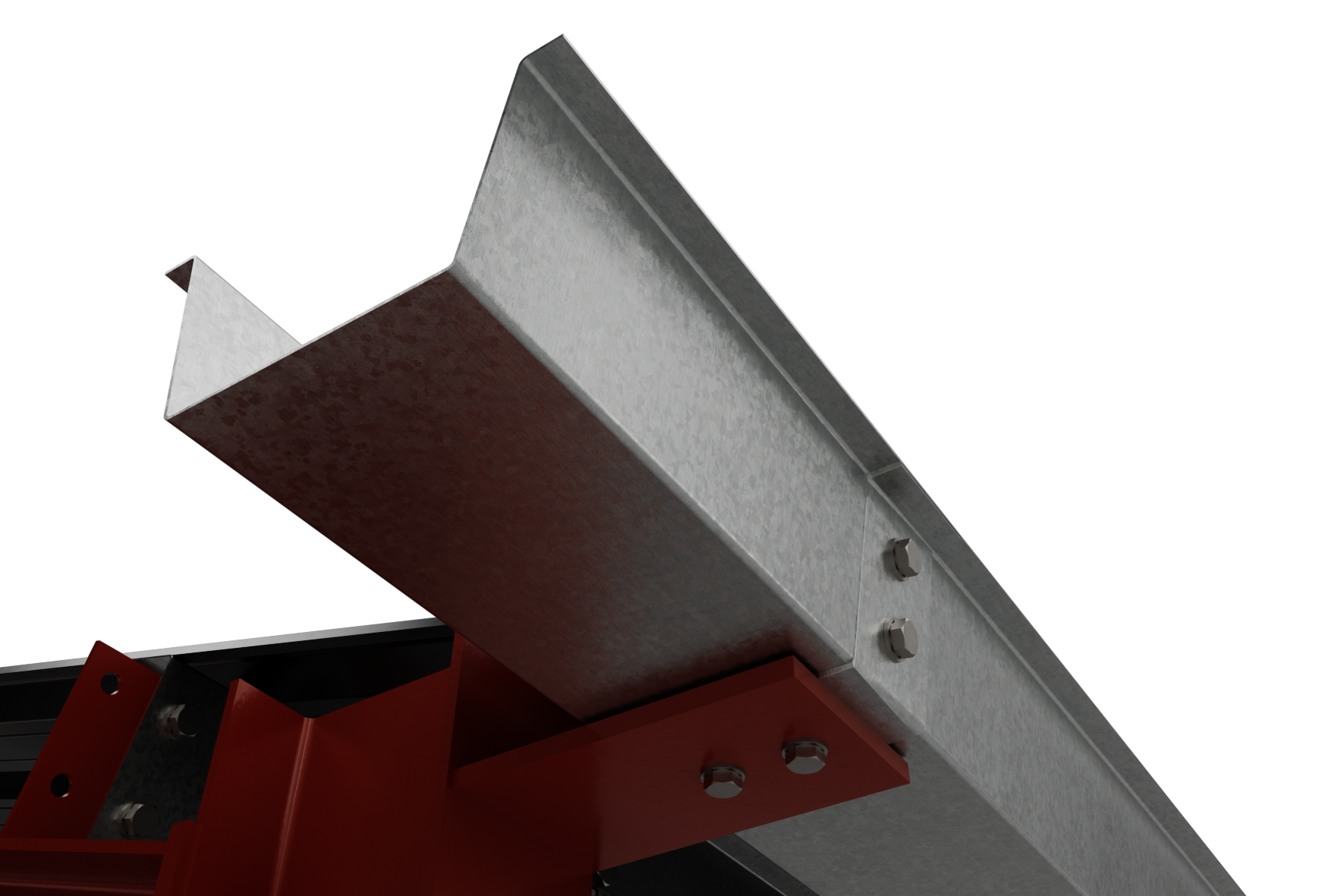

The Spanflow Gutter is designed to connect at post positions, allowing for a unified and structurally sound installation.
The system incorporates a shared set of connection holes in both the gutter and cleat, ensuring that all components align precisely, simplifying the fitting process. This shared connection method reduces the complexity of the installation and enhances overall system stability.
The gutters are roll-formed to the required length on-site, which allows for customization based on the specific dimensions of the building. This ensures that the gutter lengths are precisely matched to the project’s needs, eliminating the need for excess seams and joints.
The flexibility to produce gutters on-site helps reduce material waste and ensures a better fit for the roofing structure.

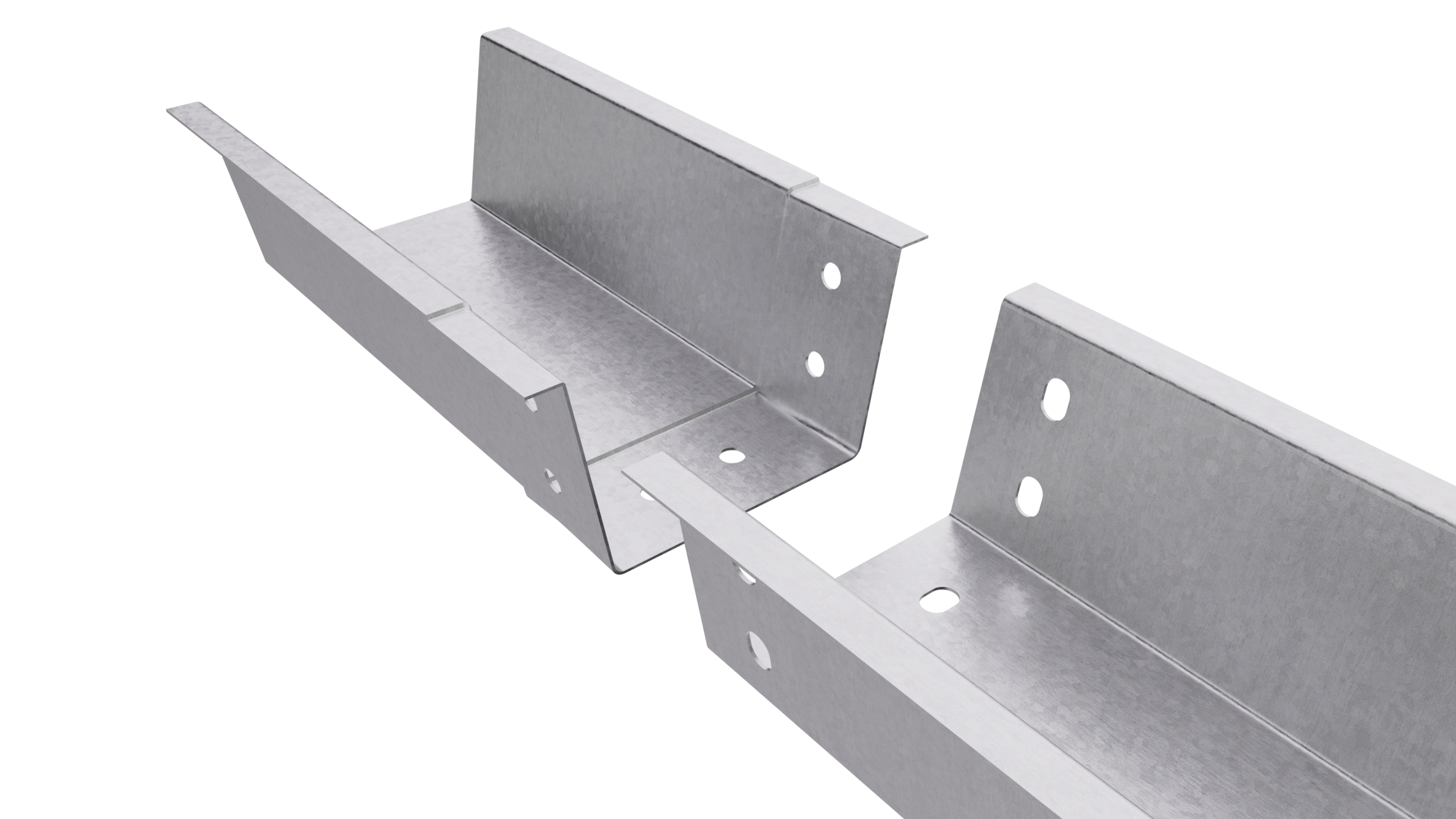

One of the key features of the Spanflow Gutter is its joggle profiled underlap end. This specialized design creates a seamless joint between gutter lengths, providing a continuous flow path for rainwater.
The joggle profile ensures a secure and tight fit between adjacent sections, preventing leaks or water ingress at the gutter joins.
TECHNICAL: INFORMATION

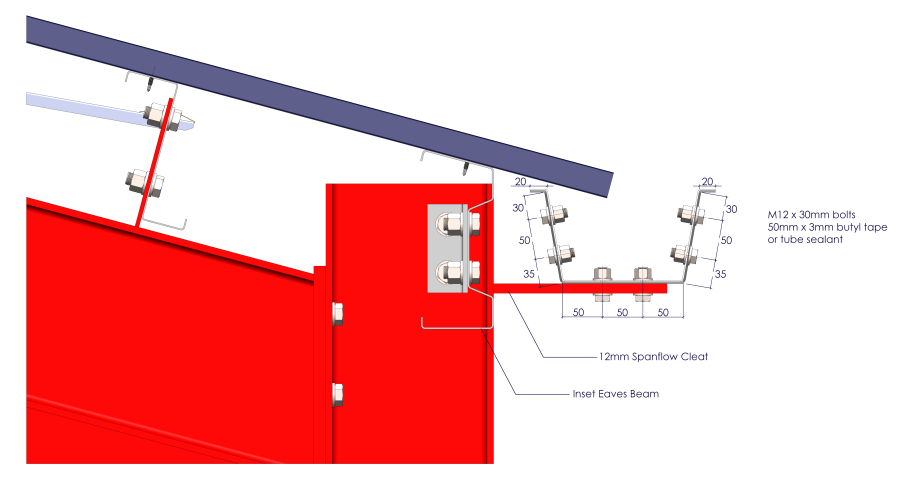

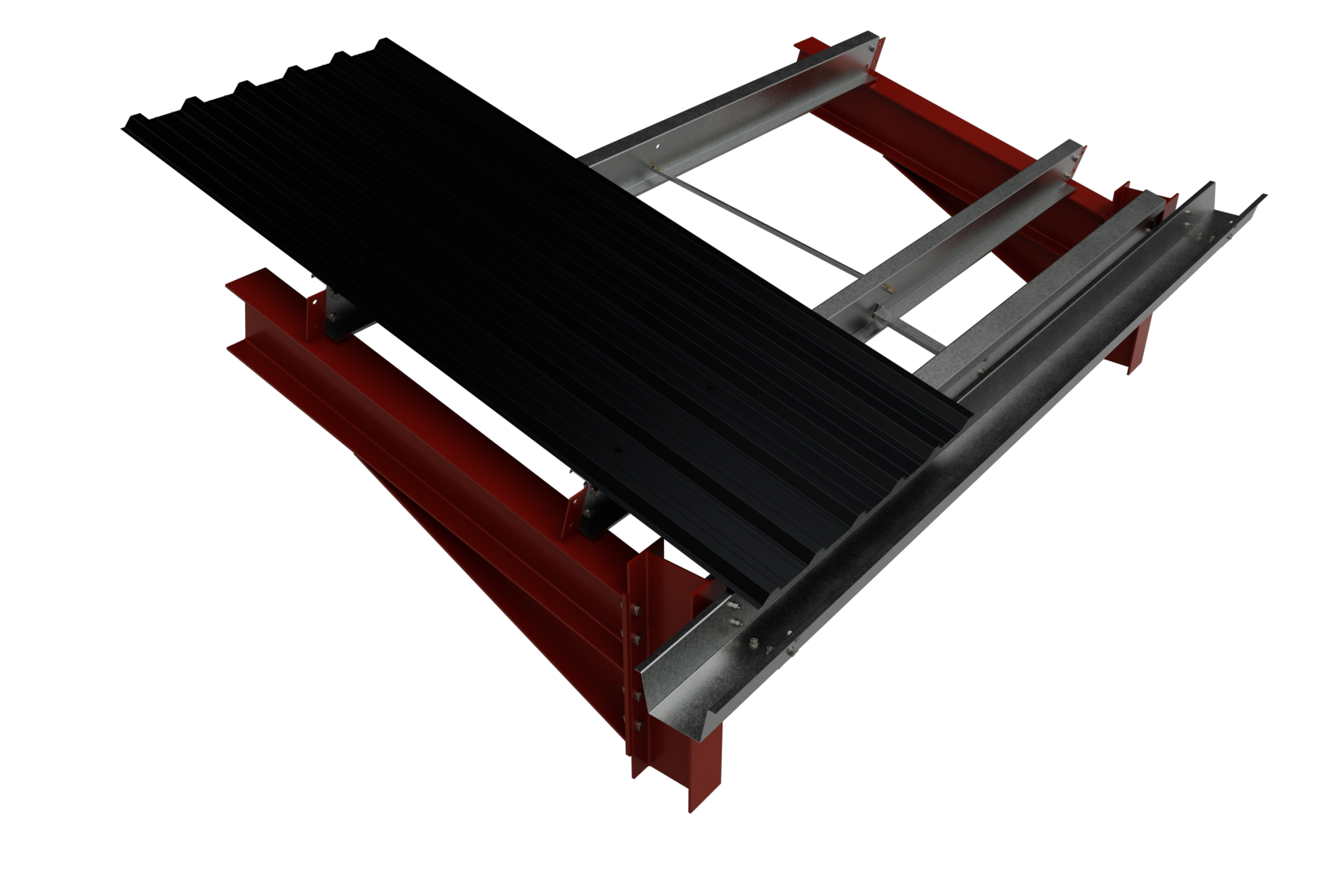

Spanflow gutter assembly
SPANFLOW
CLEATS
SPANFLOW
IMAGES
Spanflow
Installation
DOWNLOADS
Spanflow
